Parent reference
This field creates a reference to another record. Useful in hierarchical data structures. This field allows the parent to implement List of Children type fields. In edit mode, this field displays as a black text box with text autocomplete, which means that the user must know at least some of the resume name of the parent they're looking for. Most times a simple drop down of options is preferred, in which case the field Lookup: Data item should be used. In most cases it is functionally identical to this field.
Properties
- Type: Parent/child
- Groupable: No
- Show in lists: Yes
- Searchable: Yes
- Requires configuration: Yes
User interface
Field in show mode
Field in edit mode

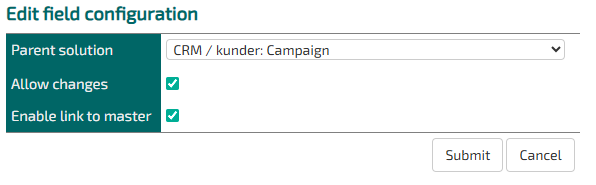

Configuration
Parent solution: Specify which entity the parent record belongs to.
Allow changes: If this is not checked, the parent cannot be changed later.
Enable link to master: If this is checked, a button will appear that links directly to the parent. Usually nice to have.
Developer info
- FeltTypeID: 201
- SQL datatype: INT(11)
- Class name: FieldSubformMaster
