Lookup: Data item

Create reference to another record. This works the same as the field "Parent reference", but creates a drop-down list of options instead of using auto-complete. Useful for when there isn't a vast amount of records to select from. This field must be used for Lookup: Data item nested to work.

Properties

  • Type: Lookup
  • Groupable: No
  • Show in lists: Yes
  • Searchable: Yes

User interface

Field in show mode

[INSERT IMAGE]

Field in edit mode

[INSERT IMAGE]

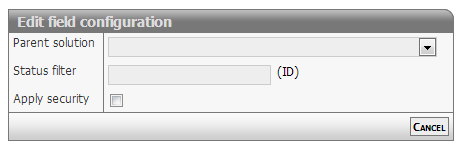

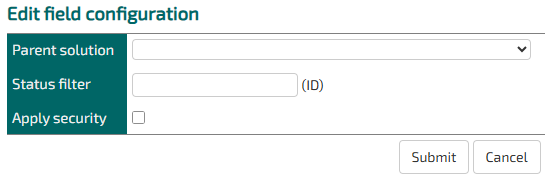

Configuration

This field requires configuration before deployment.


Parent solution: Choose which entity the parent record will be chosen from.

Status filter: Optionally, you can specify a StatusID of a single status in the parent entity that all the record options should have.

Apply security: If this is not checked, then records will show up in the dropdown even if the user does not have permission to read them.

Developer info

  • FeltTypeID: 561
  • SQL datatype: INT(11)
  • Class name: FieldLookupListRecordKey
